Long Jacks, Short Jacks, and Aluminum Posts and Panels



Bundle Long and Short Jacks in E-Z DECK® Jack Racks (Item 10283) before shipping or returning them.

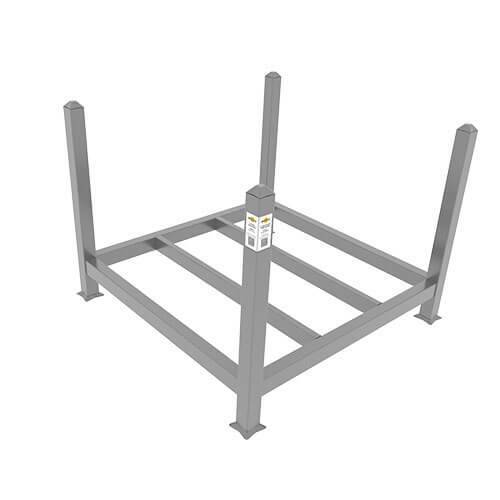

EMPTY-RACK

E-Z DECK Long Jack (Item 16520) Bundling Instructions

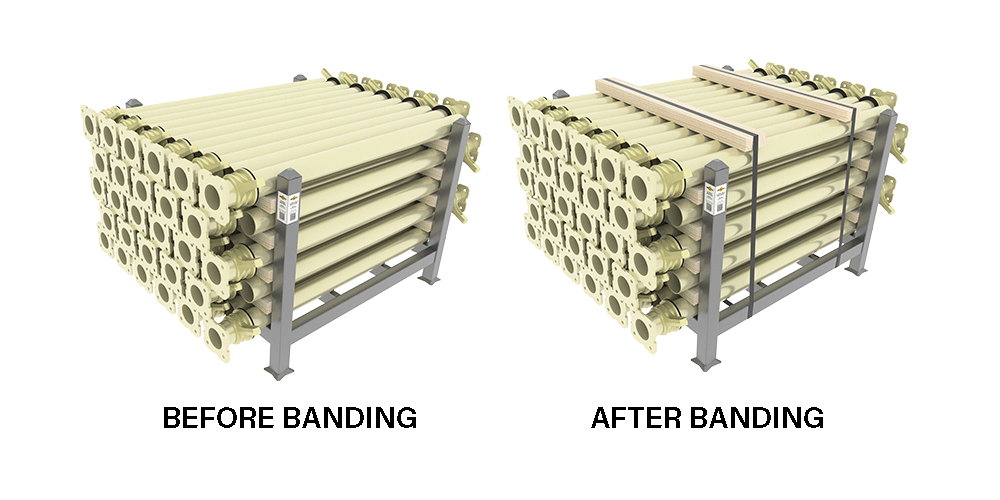

Bundle Long Jacks in E-Z DECK® Jack Racks (Item 10283) in layers of 11 per row by five (5) high.



Cut pieces of dunnage-grade lumber (2×4, 2×3, or 2×2). Place two (2) pieces of cut lumber between each layer of Long Jacks toward the ends. Do not place lumber underneath the bottom row of Long Jacks.



While placing the Long Jacks into layers, alternate the orientation of each jack base in each layer while also alternating the jack bases vertically.



Place two (2) bands under and around each complete E-Z DECK Rack of Long Jacks perpendicularly. Include dunnage-grade lumber under the bands on the top of the bundle, as shown.





E-Z DECK Short Jack (Item 15520) Bundling Instructions

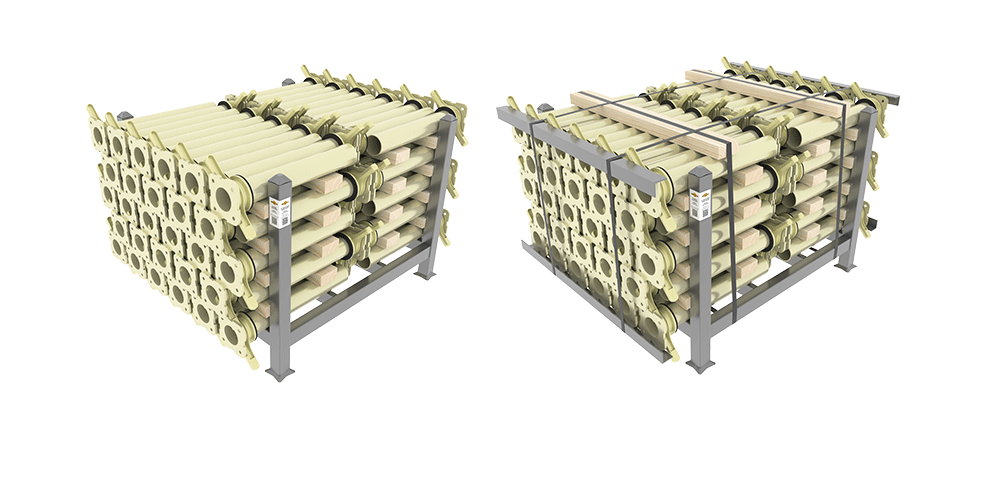

Bundle Short Jacks in E-Z DECK Jack Racks (Item 10283) in layers of 11 per row by five (5) high in two (2) separate stacks, as shown.



Cut pieces of dunnage-grade lumber (2×4, 2×3, or 2×2). Place two (2) pieces of the cut lumber between each layer of Short Jacks towards the ends. Do not place lumber underneath the bottom row of Short Jacks.



While placing the Short Jacks into layers, alternate the orientation of each jack base in each layer while also alternating the jack bases vertically. Each stack of jacks also needs to alternate.



Place two (2) pieces of dunnage-grade lumber on the top layer, one per stack. Apply rigid angles to the jack plates of the top and bottom rows on each side of the rack. Place bands under and around each complete E-Z DECK Rack of Short Jacks in two (2) directions (parallel and perpendicularly.) See picture.

E-Z DECK Aluminum Post Bundling Instructions (All lengths)

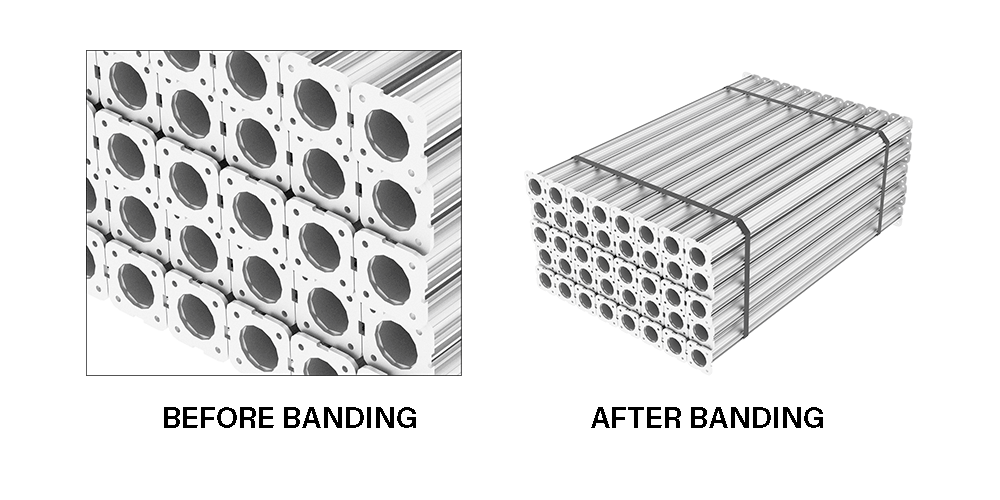

Bundle 40 aluminum E-Z DECK® Posts eight (8) per row by five (5) high. No lumber is needed when bundling the posts. Interlock each post end plate with the extruded rails of the post next to it, above it, and below it, as shown. To accomplish this, alternate the end plates in each row and stagger each row on top of each other. Place two (2) bands under and around the complete bundle of posts, one toward each end, to secure them.

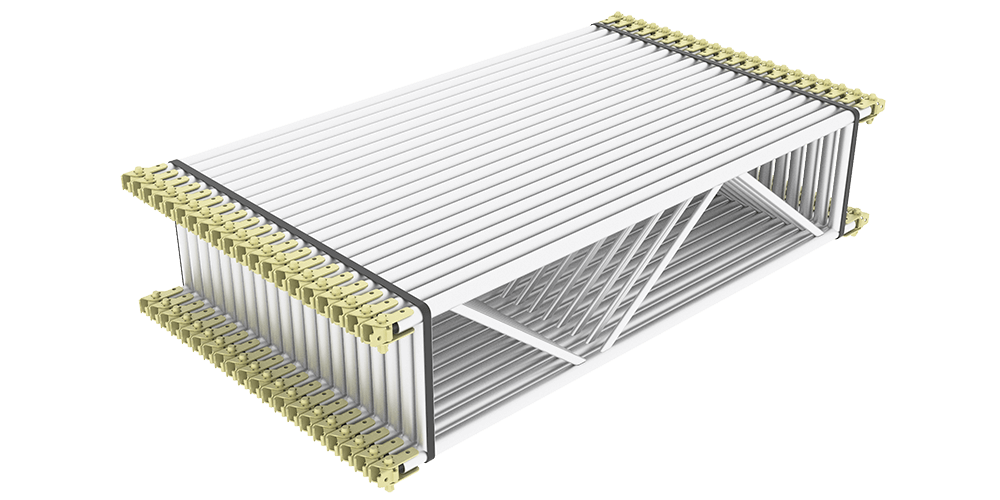

E-Z DECK Aluminum Panel Bundling Instructions (All lengths)



Include 20 aluminum E-Z DECK Panels per bundle.



Orient all Bobber Pins downward with the hinged jaws closed on every panel in the bundle.



Band each bundle with two (2) bands. As shown, place a band over and around the bundle at the vertical tube near each panel end. (Do not band horizontally.)

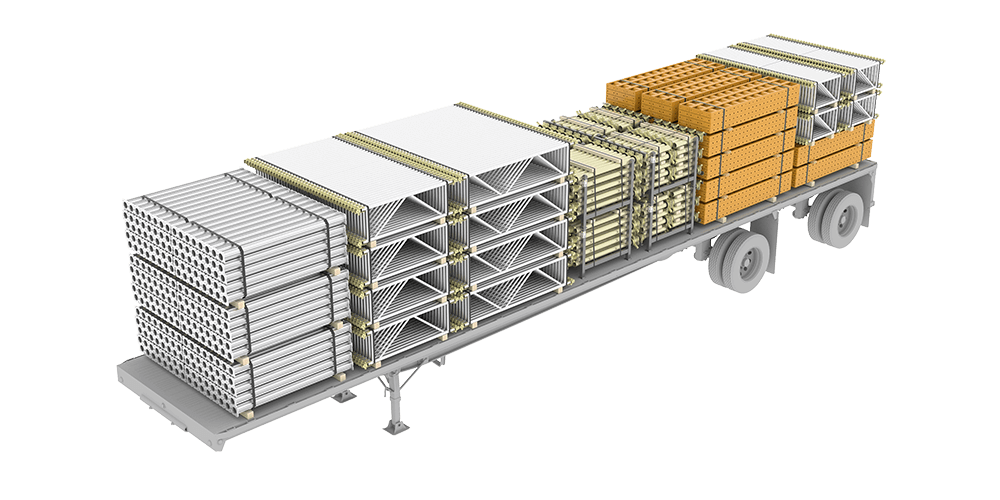

E-Z DECK Truck Loading Guide



Load bundles of E-Z DECK® Panels two (2) wide and four (4) high.



Load racks of E-Z DECK jacks two (2) high and with the jacks set parallel to the length of the trailer. Block the racks in by other products on both sides.



Load bundles of Z-BEAMS® three (3) wide by five (5) tall with dunnage-grade lumber between each stacked bundle.



Load bundles of E-Z DECK Posts two (2) wide and three (3) tall with dunnage-grade lumber between each stacked bundle.



Be mindful of the weight differences between the steel Z-BEAMS and E-Z DECK jacks and the aluminum E-Z DECK Posts and Panels and distribute accordingly. Always load the E-Z DECK Posts and Panels on top of stacks if mixing steel and aluminum equipment.



It is a good practice to use larger bundles to block in smaller palletized items like buckets, U-Heads, Swivel Heads, or Drop Heads to help keep them from shifting in transit.
